● General Specifications（一般規(guī)格）
○ Material:Frame And Impeller:Thermal Plastic UL 94-0
○ Lead Wires:UL Type RED Wire Positive(+) Black Wire Negative(-)
○ Operation Temperature:-10℃～+70℃    35%～85%RH
○ Storage Temperature:-40℃～+70℃ 35%～85%RH

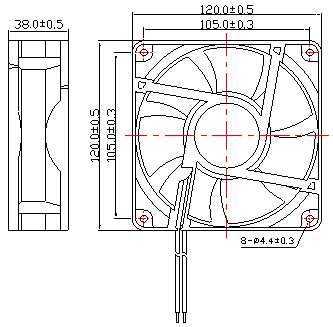

● Dimensions Drawing(外觀圖）

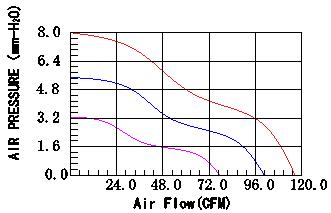

● Characteristic Curves（特性曲線）


● Specifications（規(guī)格）

型號 Model	軸承類型 Bearing  Type	電壓 Rated Voltage	頻率 Fre- quency	電流 Current	功率 Power	轉(zhuǎn)數(shù) Speed	噪音 Noise Level	風量 Air  Flow		風壓 Static Pressure	重量 Weight
		VAC	Hz	A	W	RPM	dBA	M3/min	CFM	mmH20	g
JEH1238B	Ball	110～240	50/60	0.09	6.0	3000	45.3	197.50	116.30	8.10	260
JEM1238B				0.07	5.5	2500	40.6	168.40	99.20	5.65
JEL1238B				0.05	5.0	2000	34.1	131.40	77.40	3.35

Notes:1.Specifications Subject To Change Without Notice;
2.Design and provide products according to customer requirements.
